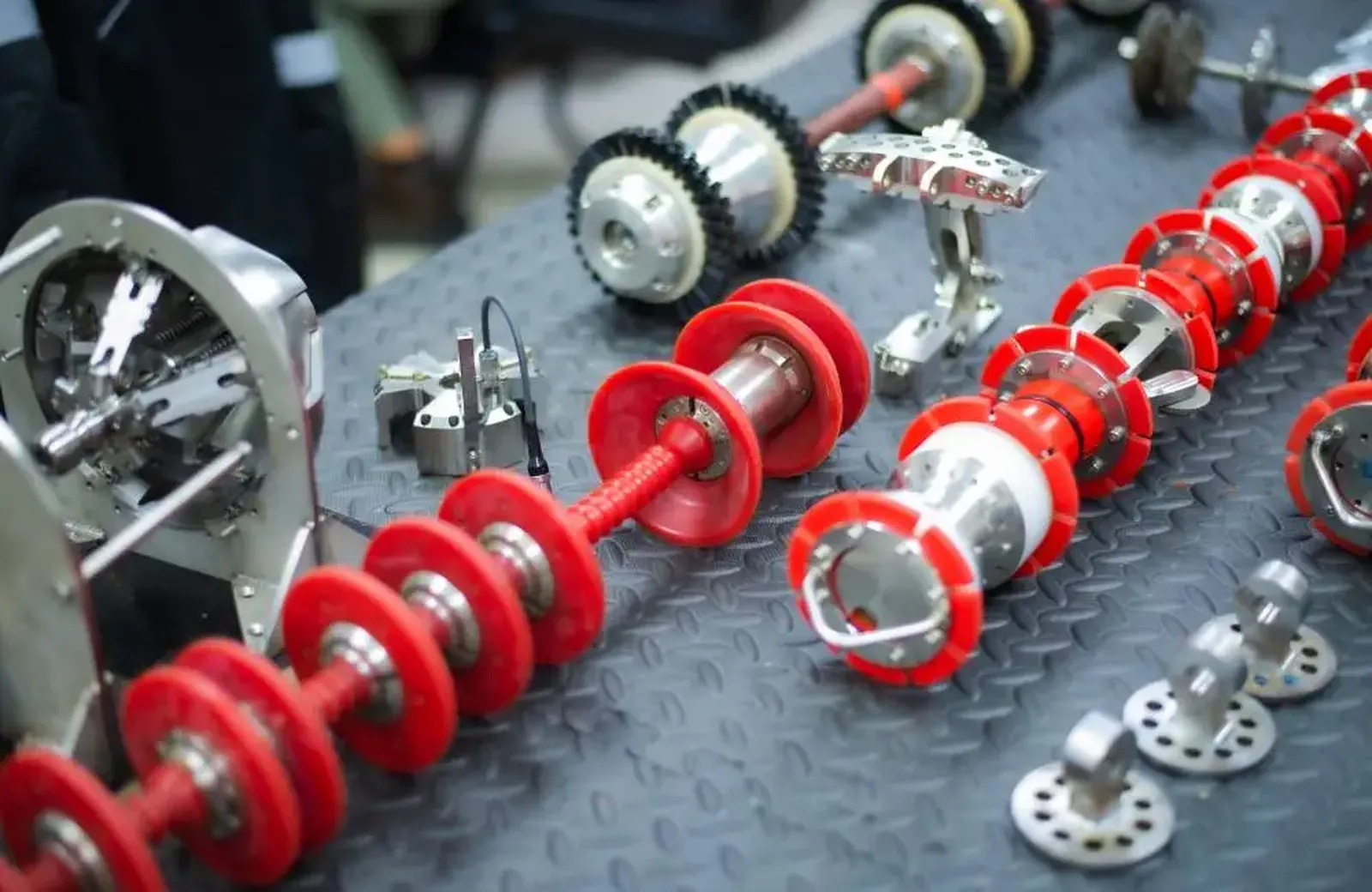

Understanding Ultrasonic Resolution in In-Line Inspection

Data drives everything in in-line inspection – from deciding to replace a spool to dialing production up or down.

But what is ILI data, really?

For our ultrasonic metal-loss tools, it is all about time of flight sizing.

A transducer sends out a signal, listens for the echo, and measures its return—down to a microsecond.

These signals are translated into measurements, visualized in A-, B-, and C-Scans, and mapped across the pipe's circumference.

And just as in photography, changes in ultrasonic resolution directly affect the clarity and precision of the structures visible in the reconstructed images.

Resolution describes how close two echoes can be to each other and still be measured as two distinct signals, rather than as a blurred response.

A blurry image might show something is there. A sharp image shows exactly what.

That exactness allows analysts to precisely define its characteristics, such as width, depth, and location in the pipe wall thickness.

In pipelines, the difference between a blur and a sharp image can be the difference between a tool reporting moderate corrosion or a critical repair anomaly.

The images below compare scans at different levels of resolution:

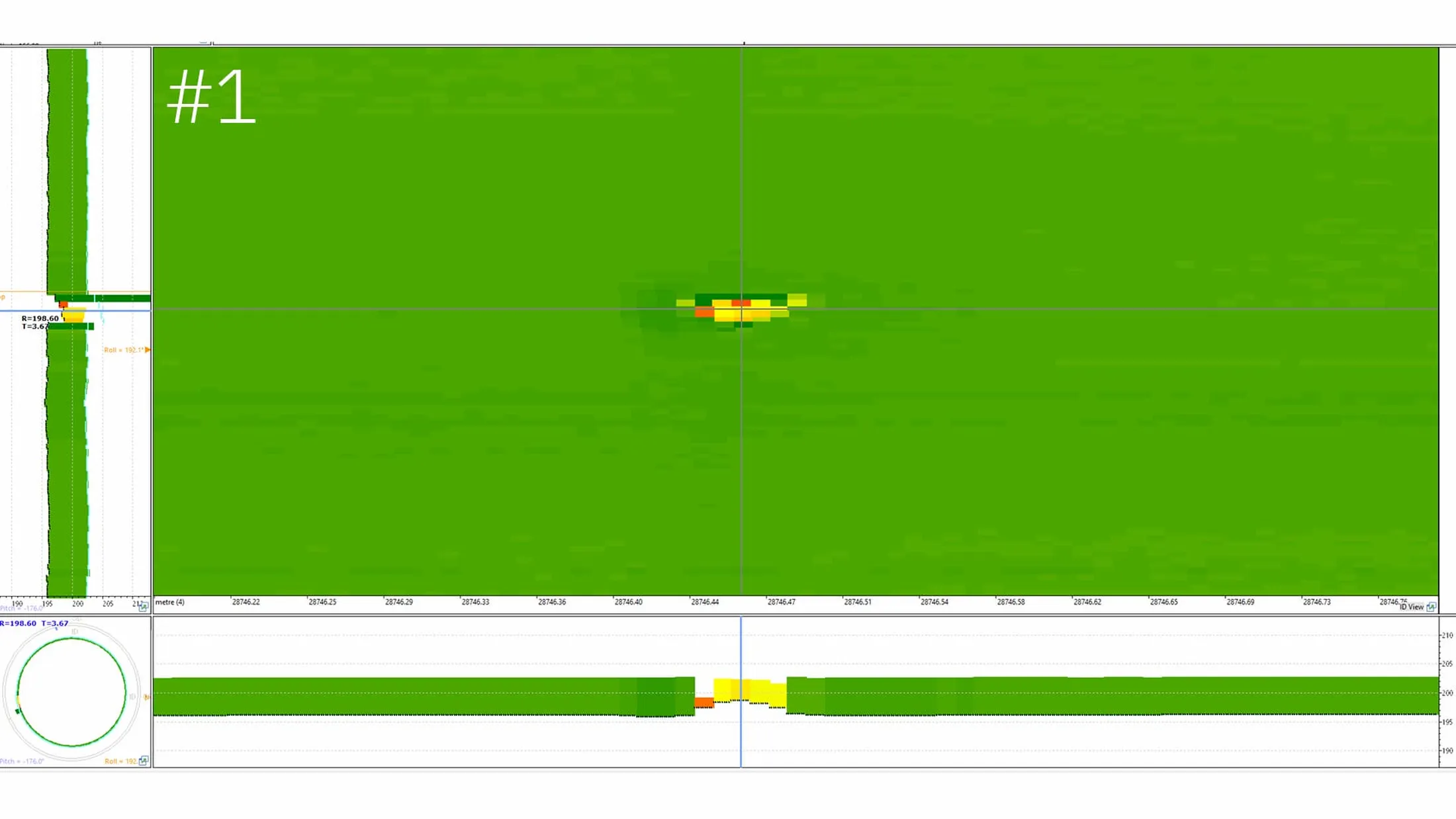

• #1: Basic shape recognition, but edge detail is soft

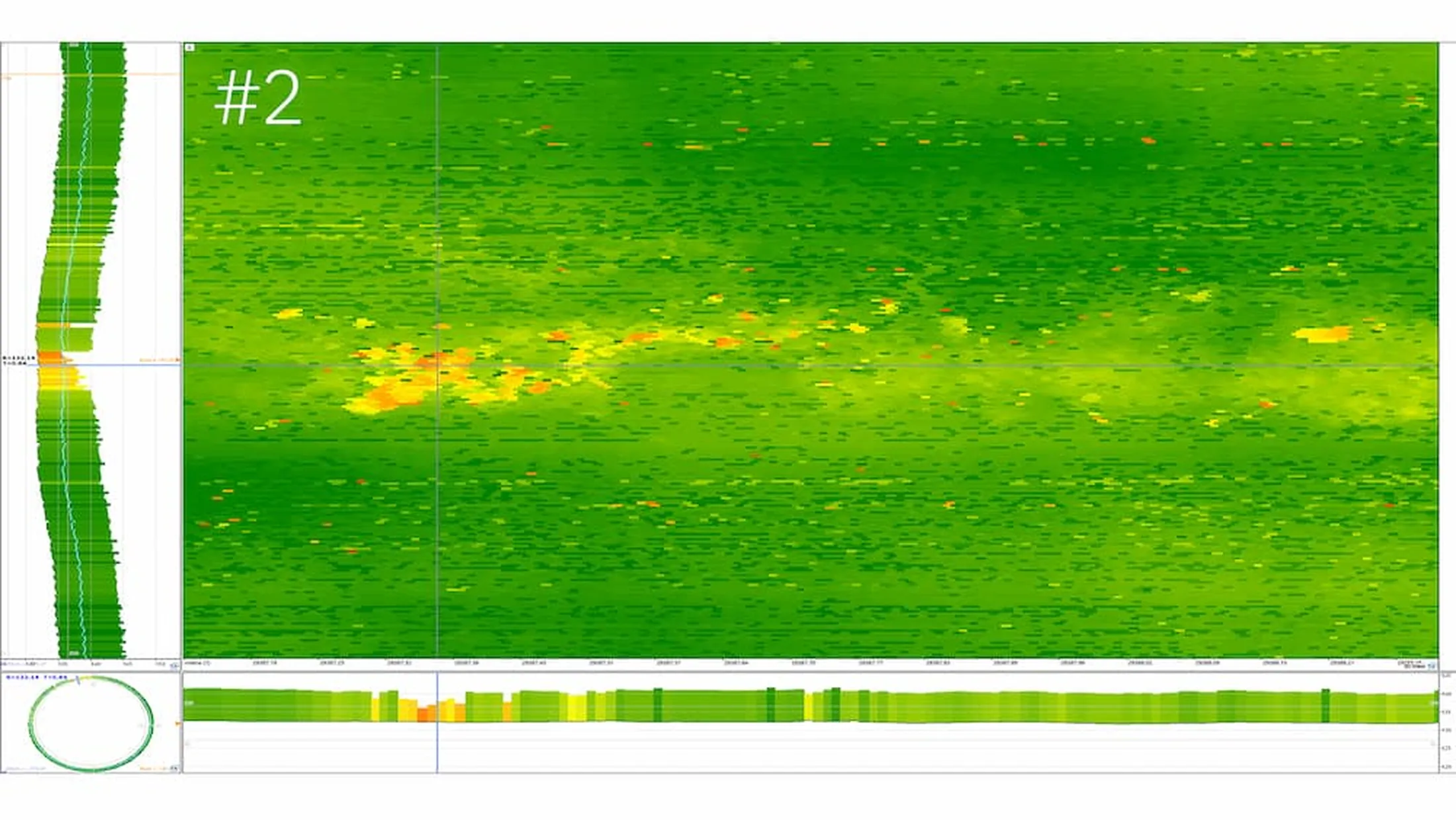

• #2: Moderate definition, corrosion clusters emerging

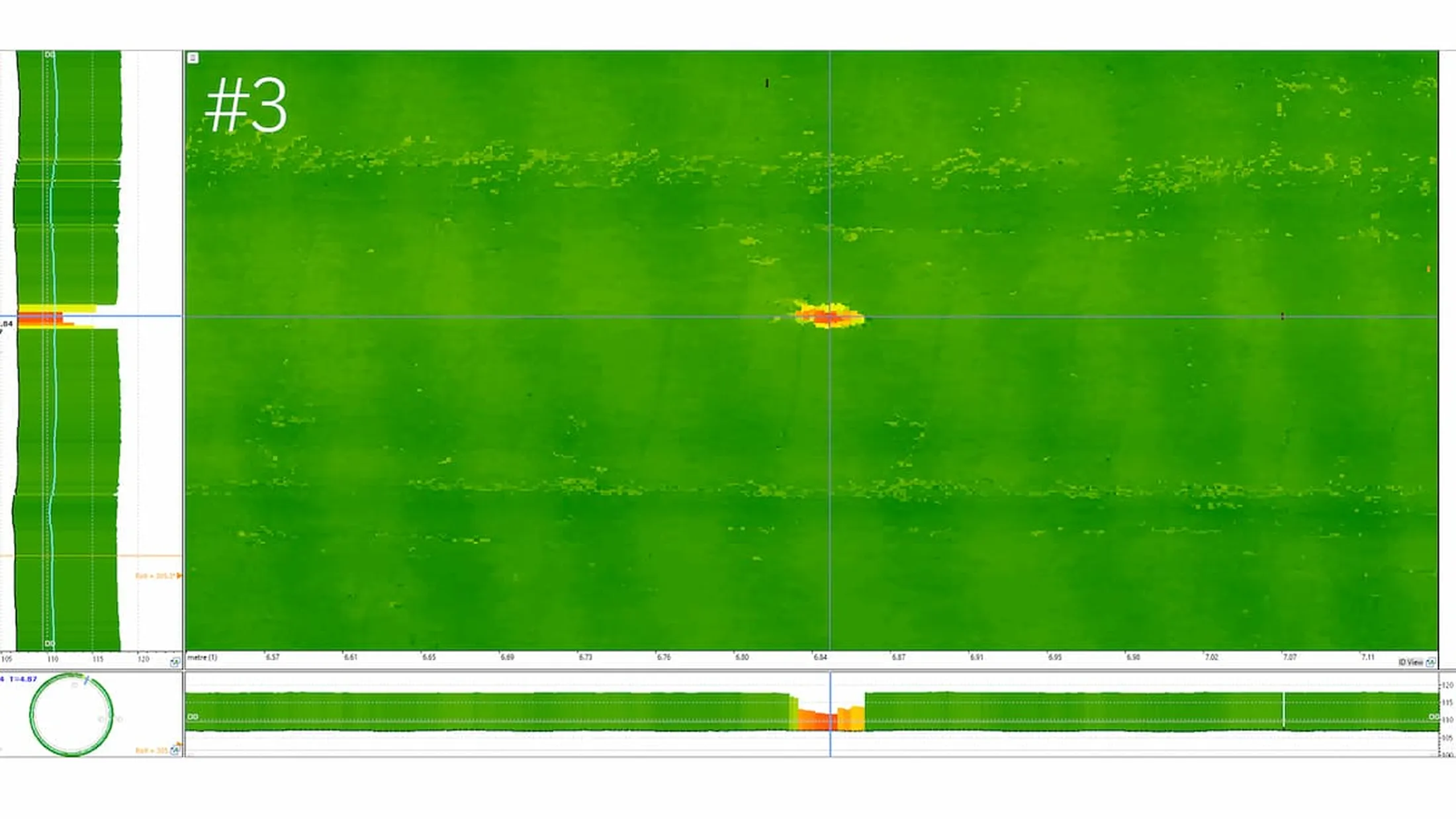

• #3: Razor-sharp outlines, fine detail unmistakable, and the rolling from pipeline production visible


A number of factors can alter resolution:

• Density of transducers (circumferential resolution)

• Signal-to-noise ratio

• Pipewall thickness

• Tool speed and sampling rate (axial resolution)

Higher resolution does not just mean prettier pictures to send in reports.

It means fewer digs, fewer missed defects, better sizing, more precise calculations, and more confident decisions.

Because when defects are the size of a pinhead, operators need a tool with microscope-grade vision.
