What is the Difference Between Push-Through and Closed-Loop Testing for In-line Inspection (ILI) Tools?

Before an in-line inspection (ILI) tool is deployed, it needs to be tested to ensure that it can pass the pipeline’s geometry and deliver clear data.

Two commonly used methods—push-through testing and closed-loop testing—serve very different purposes.

Push-Through Testing

Push-through testing focuses on mechanical performance under forward pressure.

In this setup, the tool is pushed through a pipeline test string using external force, typically water, oil, or gas.

This method allows engineers to evaluate:
• Passage through tight tolerances and restrictions
• Tool flexibility in bends and diameter changes
• Friction, drag, and overall mechanical robustness

Push-through testing is particularly useful for complex pipelines geometries or for new tool designs that require more thorough verification of navigability before proceeding to closed-loop testing.

👉 In short: Can the tool physically navigate the pipeline?

Closed-Loop Testing

Closed-loop testing is designed to replicate real operating conditions.

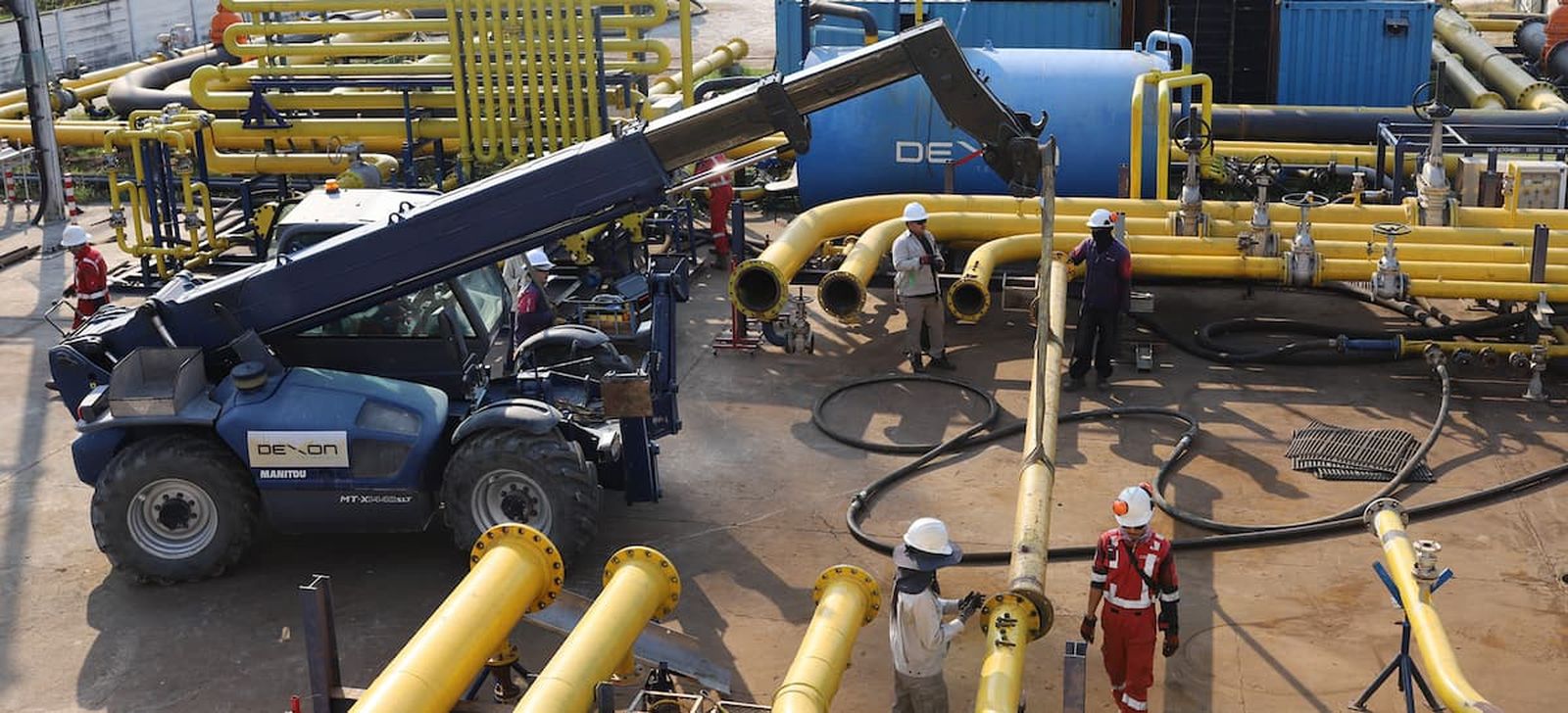

Here, the tool is driven by fluid through a continuous pipeline loop, simulating actual inspection runs.

This method enables evaluation of:
• Data quality and signal stability under flow
• Tool velocity effects on resolution
• Detection and sizing performance (POD, POS) using known defects

Closed-loop testing is critical for validating whether the tool can deliver accurate, reliable inspection data—and particularly ensure that navigating a difficult feature in a pipeline is not a matter of luck.

👉 In short: Can the tool deliver data you can trust?

Why It Matters

The distinction is simple but important:

• Push-through = mechanical feasibility
• Closed-loop = inspection performance

Engineers use both, sometimes together, to be confident that their ILI tool will perform as promised when it finally hits the field.
